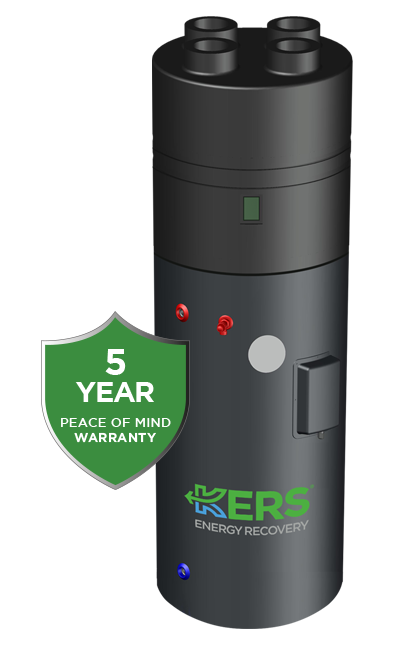

KERS COOL BOOST

HOT WATER - HEAT RECOVERY - FREE COOLING.
MITIGATES OVERHEATING IN DWELLINGS

The Cool Boost Module integrates with the Weatherby Indoor Heat Pump System to provide a combined renewable hot water and free cooling solution. MVHR + COOLBOOST

HIGH PERFORMANCE

KERS COOL BOOST

New Homes or retrofitted to existing ventilation systems

* PATENT PENDING
Kers patent pending software and controls uses this cold air to provide free comfort cooling to mitigate overheating in dwellings and comply with part O of building regulations. Working alongside MVHR systems this is a complete solution to over heating and ventilation

For future builds it’s about making this a part of the mandatory check list at the initial design stage. A primary purpose of how we ventilate and create an optimal thermal temperature all year round within a building. For residential apartments, with often no option for natural ventilation, mechanical clean air input and extract is a necessity and therefore a new hybrid heating and cooling system needs to be considered to help with the optimisation of temperatures.

Optimise temperatures all year round

The KERS Cool Boost System offers all the benefits of an MVHR with the added bonus of a cooling module for the extreme summer months, meaning homes can have a constant source of clean, fresh air and remain habitable - set to an optimal comfort temperature all year round.

LOW ENERGY HIGH OUTPUT

Approved by the Building Research Establishment, TUV and SAP registered. Compliant with part L & F of building regulations.

KERS COOL BOOST

Retrofitting and future-proofing for new homes the KERS Cool Boost keeps properties healthy and habitable going forward

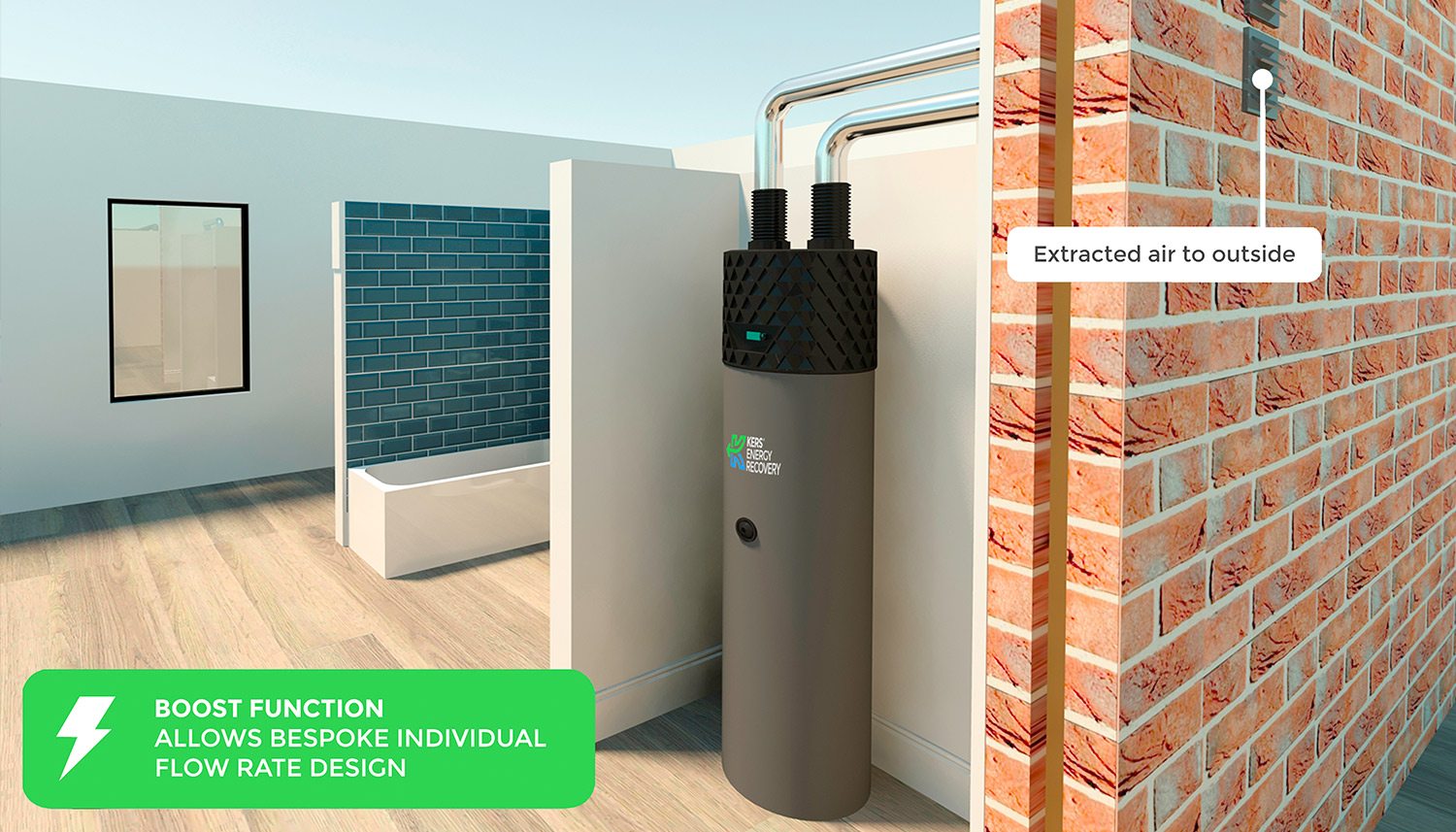

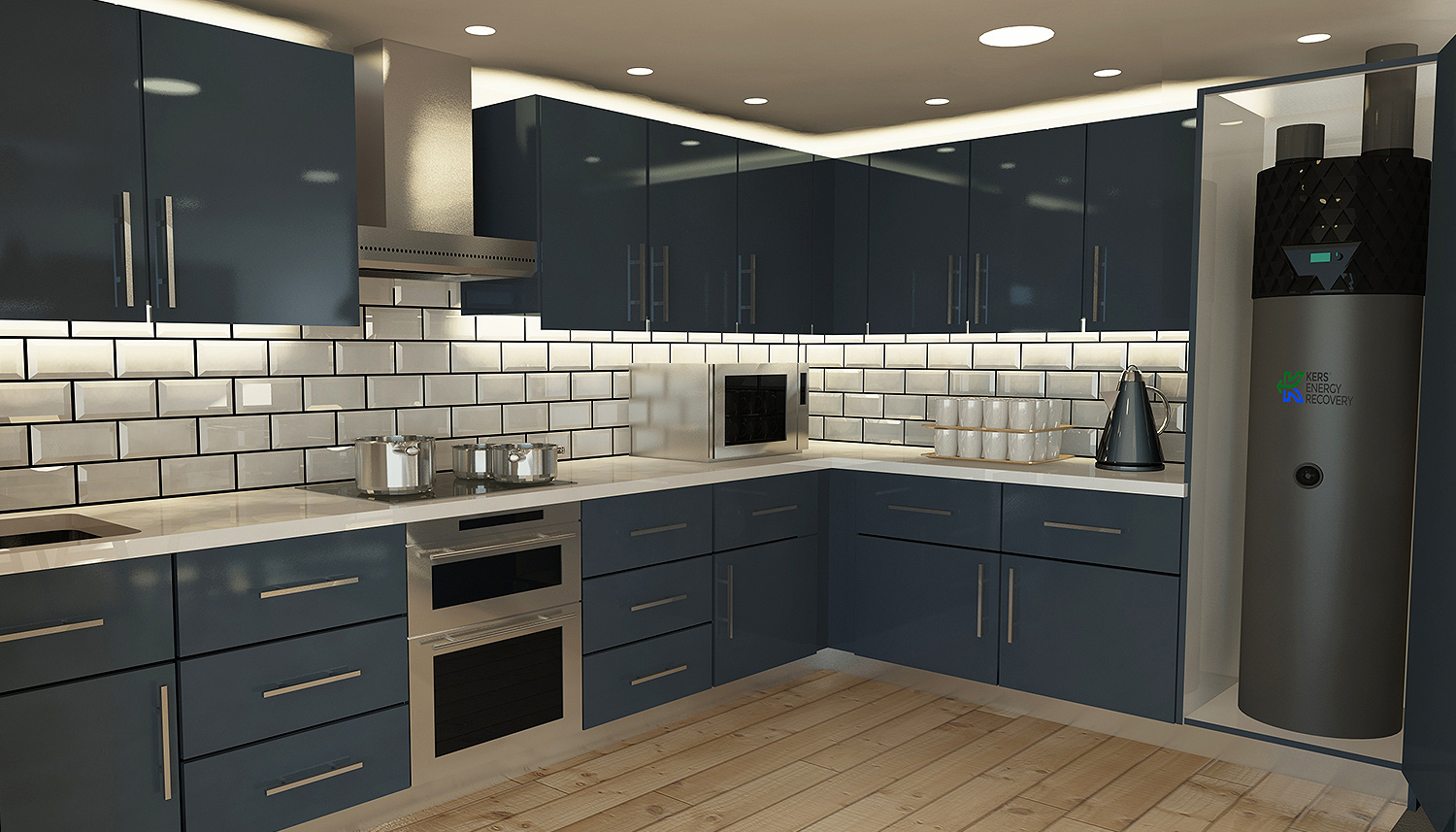

TYPICAL UTILY CUPBOARD
TYPICAL 1 BED APARTMENT
TYPICAL 1 BED APARTMENT

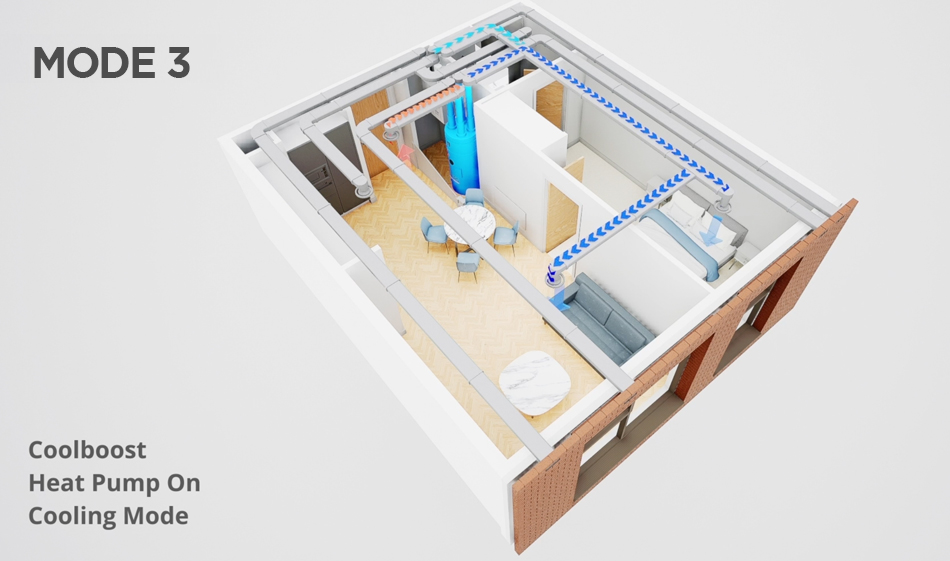

COOL BOOST FUNCTION

KERS COOLBOOST-W230

KERS COOLBOOST-W300

Calculations based on 55℃ according to EN16147

* 5 YEAR WARRANTY SUBJECT TO ANNUAL SERVICE AGREEMENT *

KERS COOLBOOSTKERS COOLBOOST-W230KERS COOLBOOST-W300
Tank Volume (Litres)230300
Cooling Capacity1.5kw1.5kw
Heating Capacity (W)20102010
Max Power Input560w560w
COP (EN255/3)4,54,5
COP (EN16147)3,53,5
Electrical Connection230v/50Hz/1Ph230v/50Hz/1Ph
AMP1010
Working Pressure8 BAR8 BAR
Max Water Temp (No immersion)70℃70℃
RefrigerantR134AR134A
Electrical Heater Optional (W)30003000
Duct Minimum Diameter (mm)150mm/220mm x 90mm150mm/220mm x 90mm
Max Pressure (Pa)see fan specsee fan spec
Flow rate minimum (I/s)8080
Corrosion ProtectionVacuum enameledVacuum enameled
Weight (Kg)105120
Dimensions (mm) HxD1858 x 668 2108 x 668
FREE COOLING
The waste by-product of the Kers indoor heat pump is cold air. Using cool bank controls this cold air is diverted into dwellings to provide comfort cooling and mitigates overheating
INCREDIBLE EFFICIENCY AND SAVINGS

Overall COP Value combined hot water and cooling mode is 5.6. For every 1KW of energy consumed Kers can supply over 3.5 of thermal energy and 1.6KW of cooling – PATENT PENDING

COOLBANK CONTROLS (User Friendly)
Summer boost = automatically operates to comply with Part O of building regulations to mitigate the overheating in dwellings Manual Mode = Simple on/off push button operation provides on demand cooling with a boost of cold air
GUARANTEED YEAR-ROUND EFFICIENCY 24/7
Our 5 Year warranty ensures that with an annual check up you are guaranteed piece of mind. (Annual service agreement required)
