KERS MEV

KERS MEV SERIES

Indoor Heat Pump - Hot Water - Heat Recovery Mechanical Extract Ventilation. Converting waste heat energy from bathrooms and kitchens to low cost, renewable hot water.

INDOOR HEAT PUMP

KERS MEV-W160
KERS MEV-W230
KERS MEV-W300

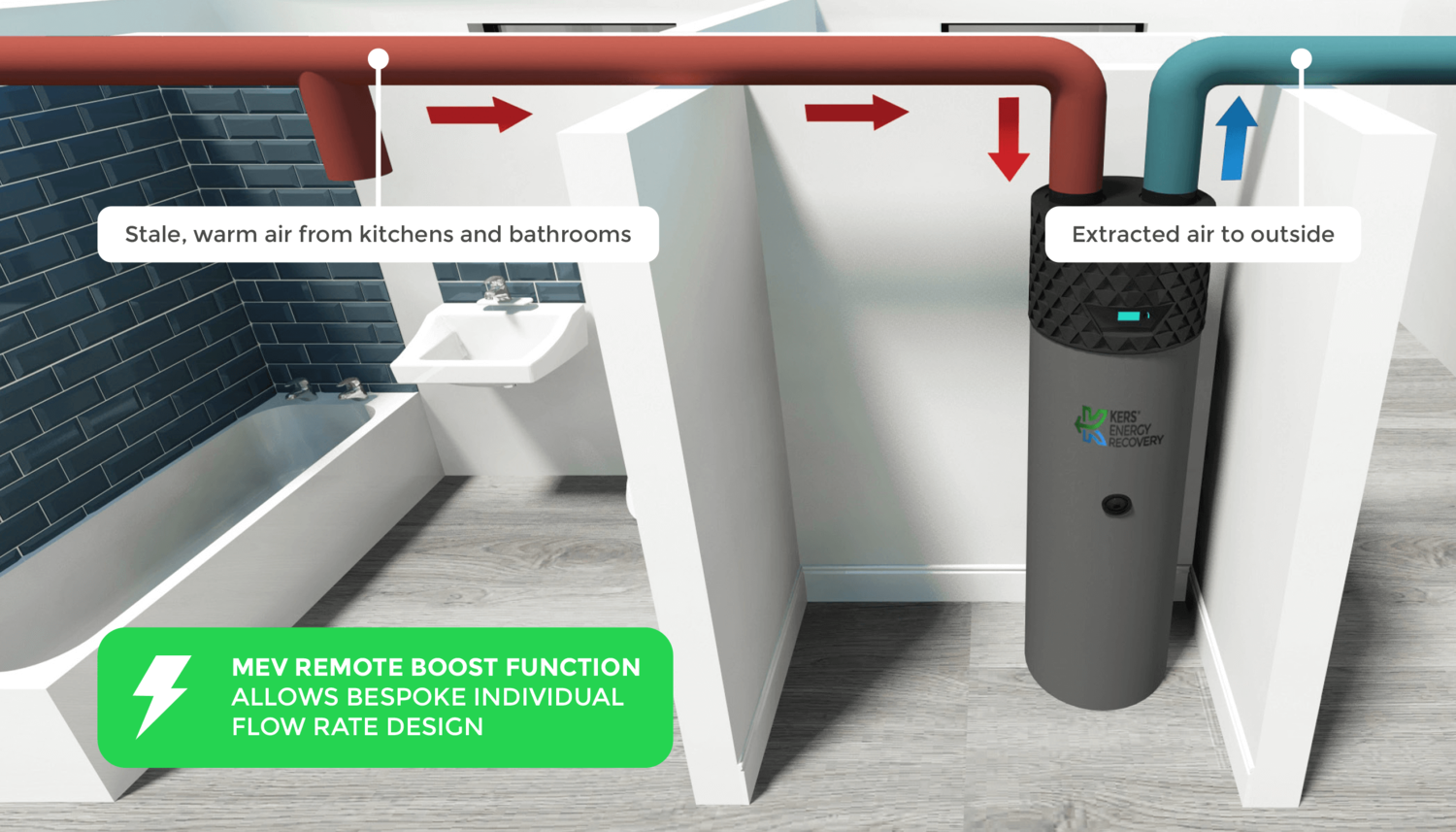

The eco-friendly KERS MEV indoor heat pump is a combined hot water, heat recovery and MEV system with storage cylinder. The all-in-one design replaces mechanical ventilation and heat recovery system with only one penetration through the building.

PRODUCT SPECIFICATION SHEET

FEATURES

APPLICATIONS

USES

SCHEMATIC

FEATURES

APPLICATIONS

USES

SCHEMATIC

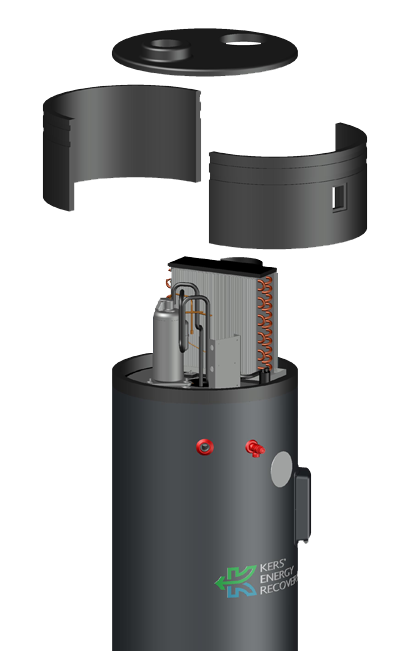

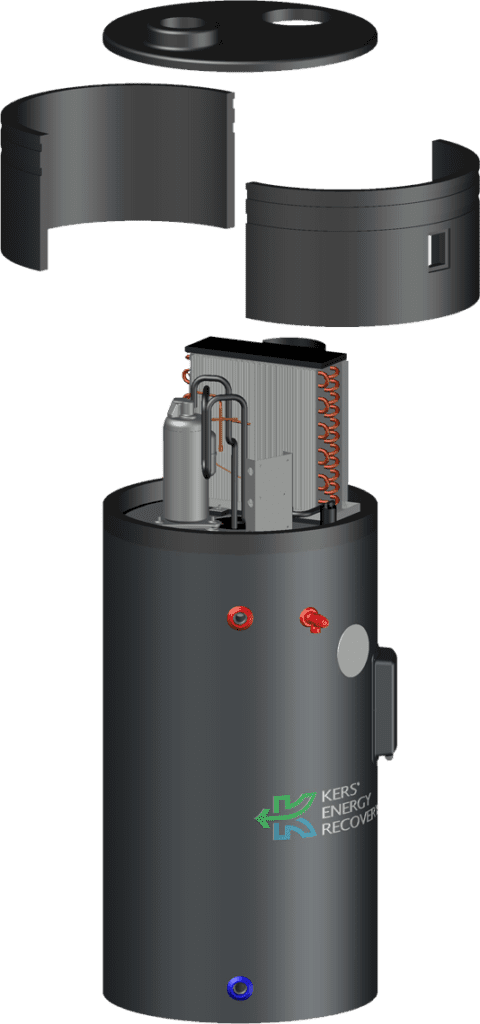

REMOVABLE COVER

For ease of servicing and maintenance the top cover is removable to allow full access to all the heat pump components

24/7 YEAR ROUND EFFICIENCY

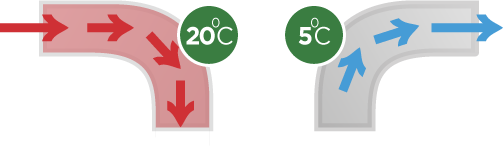

External heat pumps are less efficient as the outside temperature drops. The KERS MEV indoor heat pump recycles a constant 20c of waste energy from within your building and converts this to low-cost renewable hot water

ABUNDANCE HOT WATER AVAILABLILITY

We use a large-surface condenser that heats up the water faster due to it’s larger heat transfer surface. This can optionally be augmented with an electric heater upgrade in extreme cases such as commercial gym showers with non-stop peak flow

FUNCTION PACKED CONTROLLER

A multi-function controller provides optimal management for all operations with legionella, fan speeds, weekly timer and diagnostics

INCREDIBLE EFFICIENCY AND SAVINGS

For every 1KW of energy consumed, our KERS system can produce upto 4.5KW of thermal energy

HEATERLESS DESIGN

Most heat pumps rely on an electric immersion heater to achieve higher water temperatures. Our heaterless design produces hot water temperatures of upto 65oc solely using our heat pump technology, resulting in greater energy savings

GREAT BENEFITS

High efficiency – for every 1kw input up to 4.5kw output
Provides both hot water and ventilation
Heaterless design – achieves 65°C without the need for immersion
Removes condensation and humidity
No external condenser
Compact design to reduce space loss
Easily serviceable with bespoke design, no requirements for removal of ductwork
Weekly legionella program

Over 330% efficient

The KERS MEV recovers all of the waste energy and using heat pump technology achieving 330% efficiency as recorded in SAP

HEATERLESS DESIGN: WHY IS IT A BIG DEAL?

Most heat pumps rely on an electric immersion heater to achieve higher water temperatures. Our heaterless design produces hot water temperatures of up to 65c solely using our heat pump technology, resulting in greater energy savings.

GUARANTEED YEAR-ROUND EFFICIENCY 24/7

External heat pumps are less efficient as the outside temperature drops. Our KERS indoor heat pump recycles a constant 20c of waste energy from within your building and converts this to low-cost renewable hot water.

CONSTANT AVAILABILITY

We use an external large-surface condenser that heats water up faster due to its larger heat transfer surface. This can optionally be augmented with an electric heater upgrade in extreme cases such as commercial gym showers with non-stop peak flow.

INCREDIBLE EFFICIENCY AND SAVINGS

For every 1KW of energy consumed, our KERS system can produce up to 4.5KW of thermal energy.

KERS MEV-W160

KERS MEV-W230

KERS MEV-W300

Calculations based on 55℃ according to EN16147

* 5 YEAR WARRANTY SUBJECT TO ANNUAL SERVICE AGREEMENT *

KERS MEV SERIES	KERS MEV-W160	KERS MEV-W230	KERS MEV-W300
Tank Volume (Litres)	160	230	300
Heating Capacity (W)	2010	2010	2010
Max Power Input	460	460	460
COP (EN255/3)	4,5	4,5	4,5
COP (EN16147)	3,5	3,5	3,5
Electrical Connection	230v/50Hz/1Ph	230v/50Hz/1Ph	230v/50Hz/1Ph
AMP	10	10	10
Working Pressure	8 BAR	8 BAR	8 BAR
Max Water Temp (No immersion)	70℃	70℃	70℃
Refrigerant	R134A	R134A	R134A
Electrical Heater Optional (W)	3000	3000	3000
Duct Diameter (mm)	180 reduced - 125/204/60mm	180 reduced - 125/204/60mm	180 reduced - 125/204/60mm
Pressure (Pa)	See fan spec	See fan spec	See fan spec
MEV sfp (w/l/s)	0.5	0.5	0.5
MEV Flow Rate	To Part F	To Part F	To Part F
Corrosion Protection	Vacuum enameled	Vacuum enameled	Vacuum enameled
Weight (Kg)	105	120	130
Dimensions (mm) HxD	1494 x 668 x 668	1638 x 668 x 668	1888 x 668 x 668
Noise Level (2m) dB(A)	41	41	41

TRADITIONAL HEAT PUMPS

Reliant on weather; in colder temperatures they become less efficient.
Only operates to 55°C with immersion top up.
Uses immersions.
Complicated and expensive installation.
No MEV functionality.
External condensing unit can create planning issues.

KERS INDOOR HEAT PUMP

Recycles waste heat, constant 20°C improves COP.
High temperature water output 65°C.
Heaterless design requires no immersions.
Simple installation. Just plug in and connect to the cylinder.
MEV function options
No external condenser means no planning issues.
