KERS WEATHERBY

The eco-friendly KERS Weatherby Indoor Heat Pump is a combined heat recovery, hot water system with storage cylinder. Using energy in the outdoor air to provide low cost, low carbon renewable hot water.

INDOOR HEAT PUMP

KERS WEATHERBY

KERS WEATHERBY-W160
KERS WEATHERBY-W230
KERS WEATHERBY-W300

The KERS Weatherby Heat Pump is an all in one hot water solution. 350% efficient as recorded in SAP.

PRODUCT SPECIFICATION SHEET

350% efficient as recorded in SAP

Approved by the Building Research Establishment, TUV and SAP registered. Compliant with building regulations.

Renewable Energy

  • No external condenser
  • High efficiency - For every lkw input up to 4.Skw output
  • Heaterless design - Achieves 65c without the need for immersion
  • Renewable low cost hot water
  • Weekly legionella program
  • Easily serviceable
  • Compact design to reduce space loss

KERS WEATHERBY

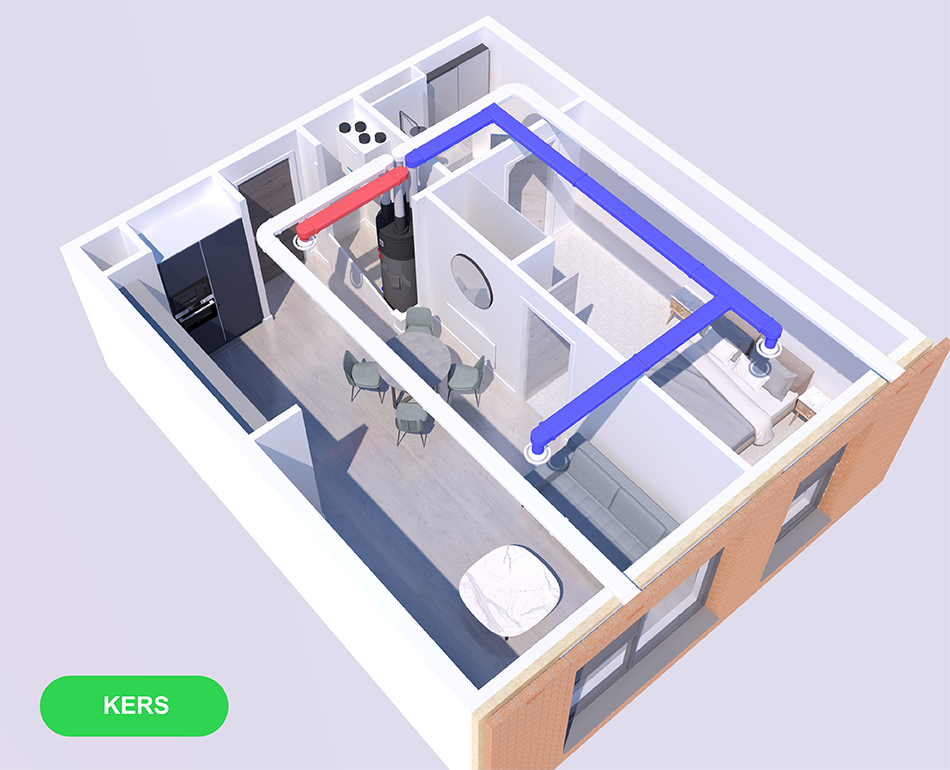

The KERS WEATHERBY recovers all of the waste energy and using heat pump technology achieves 350% efficiency as recorded in SAP

ENQUIRE TODAY

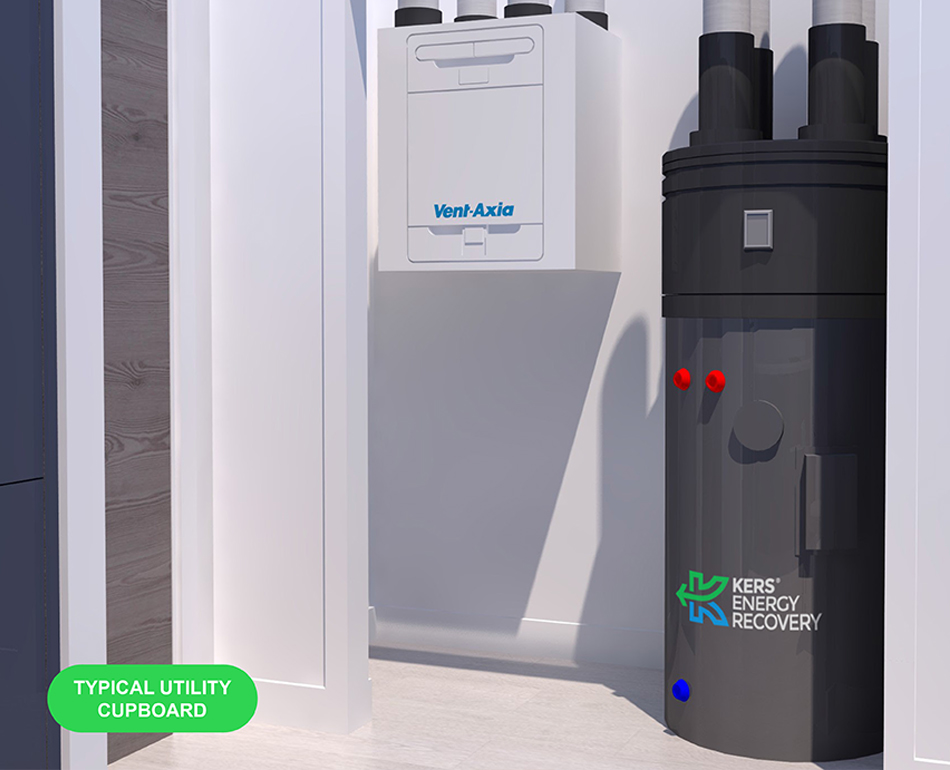

TYPICAL UTILY CUPBOARD

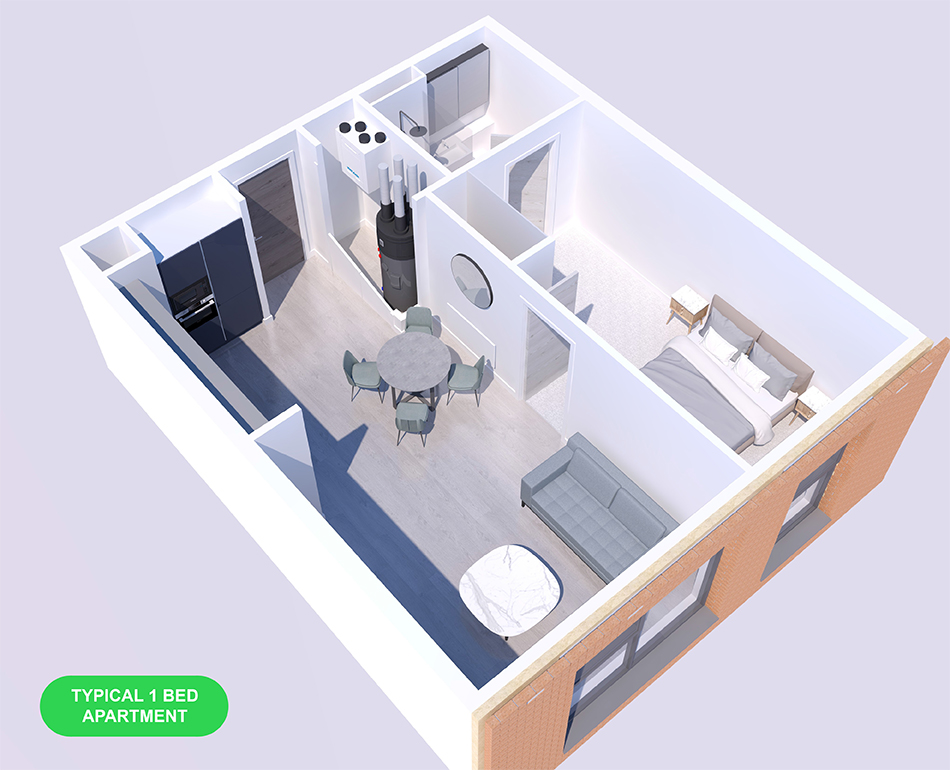

TYPICAL 1 BED APARTMENT

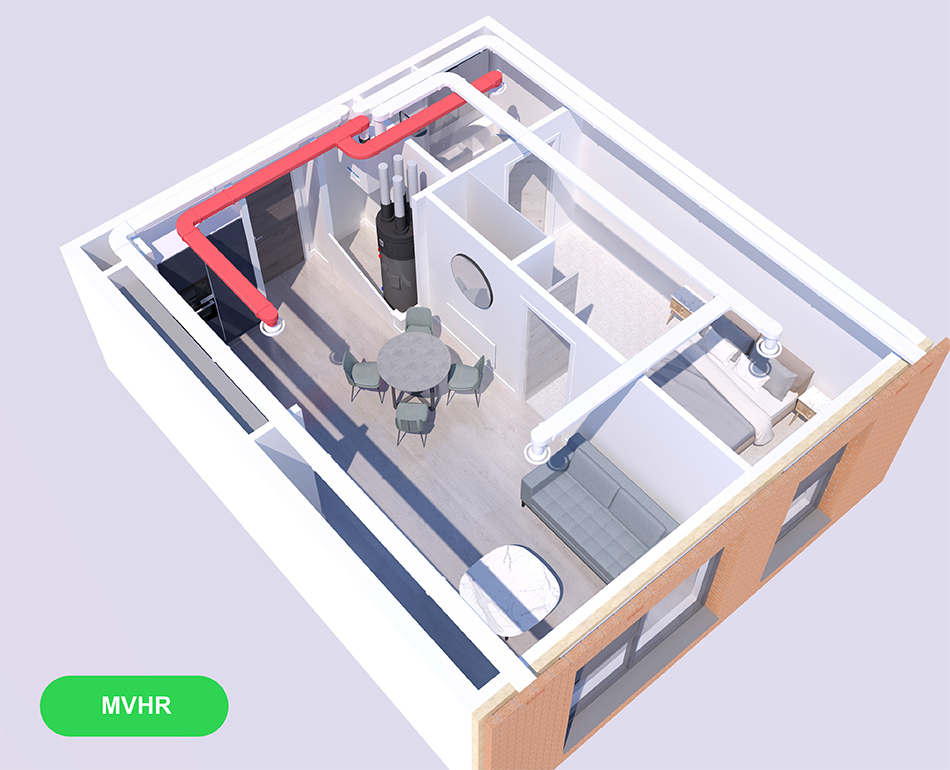

MVHR FUNCTION
MVHR FUNCTION
HEATERLESS DESIGN: WHY IS IT A BIG DEAL?

Most heat pumps rely on an electric immersion heater to achieve higher water temperatures. Our heaterless design produces hot water temperatures of up to 65c solely using our heat pump technology, resulting in greater energy savings.

INCREDIBLE EFFICIENCY AND SAVINGS
For every 1KW of energy consumed, our KERS system can produce up to 4.5KW of thermal energy.
CONSTANT AVAILABILITY
We use an external large-surface condenser that heats water up faster due to its larger heat transfer surface. This can optionally be augmented with an electric heater upgrade in extreme cases such as commercial gym showers with non-stop peak flow.

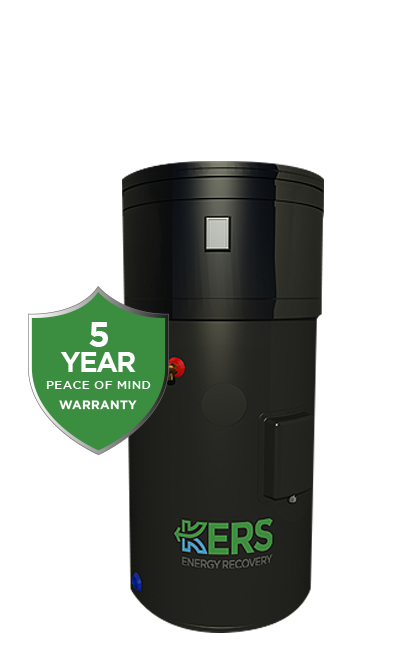

KERS WEATHERBY-W160

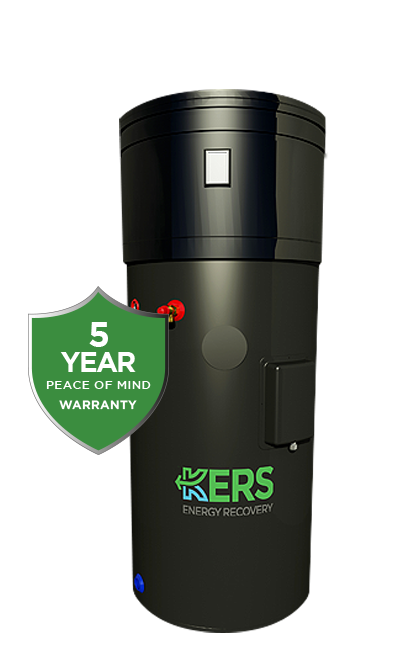

KERS WEATHERBY-W230

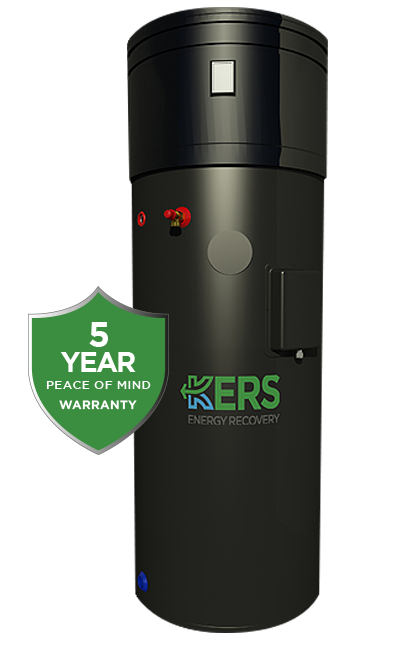

KERS WEATHERBY-W300

Calculations based on 55℃ according to EN16147

* 5 YEAR WARRANTY SUBJECT TO ANNUAL SERVICE AGREEMENT *

KERS WEATHERBY SERIESKERS WEATHERBY-W160KERS WEATHERBY-W230KERS WEATHERBY-W300
Tank Volume (Litres)160230300
Heating Capacity (W)201020102010
Max Power Input560w560w560w
COP (EN255/3)4,54,54,5
COP (EN16147)3,53,53,5
Electrical Connection230v/50Hz/1Ph230v/50Hz/1Ph230v/50Hz/1Ph
AMP101010
Working Pressure8 BAR8 BAR8 BAR
Max Water Temp (No immersion)70℃70℃70℃
RefrigerantR134AR134AR134A
Electrical Heater Optional (W)300030003000
Duct Minimum Diameter (mm)150mm/220mm x 90mm150mm/220mm x 90mm150mm/220mm x 90mm
Max Pressure (Pa)see fan specsee fan specsee fan spec
Flow rate minimum (I/s)808080
Corrosion ProtectionVacuum enameledVacuum enameledVacuum enameled
Weight (Kg)105120130
Dimensions (mm) HxD1494 x 668 1638 x 668 1888 x 668
TRADITIONAL HEAT PUMPS
  1. Reliant on weather; in colder temperatures they become less efficient.
  2. Only operates to 55°C with immersion top up.
  3. Uses immersions.
  4. Complicated and expensive installation.
  5. No MEV functionality.
  6. External condensing unit can create planning issues.
KERS INDOOR HEAT PUMP
  1. Recycles waste heat, constant 20°C improves COP.
  2. High temperature water output 65°C.
  3. Heaterless design requires no immersions.
  4. Simple installation. Just plug in and connect to the cylinder.
  5. MEV function options
  6. No external condenser means no planning issues.
